Broadband RF optical module of optical fiber communication system

当前位置：首页 - 产品中心 - Broadband RF optical module of optical fiber commu

产品中心

推荐新闻

Broadband RF optical module of optical fiber commu

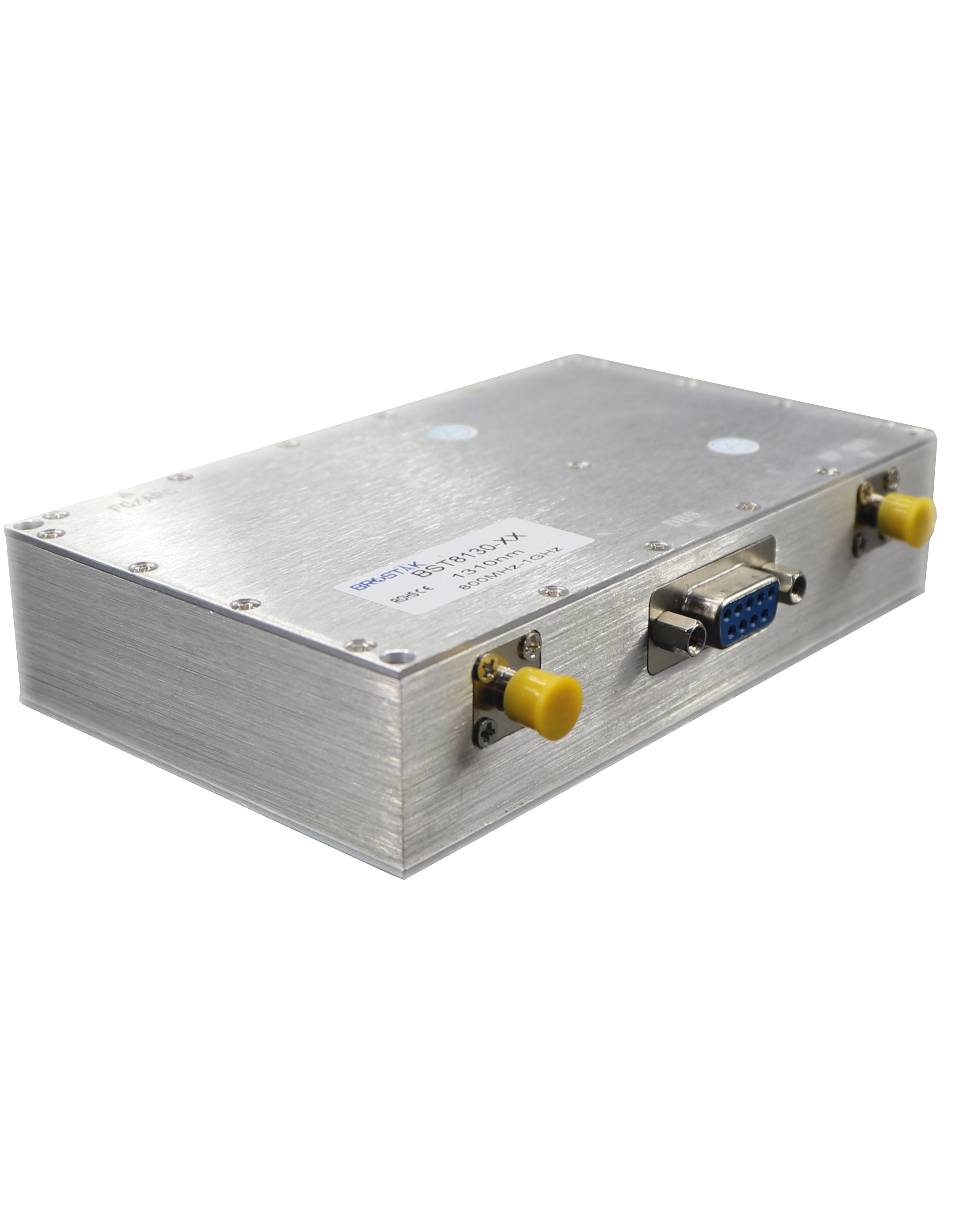

The RF over fiber transmission modul designed for RF/wireless signal transmission over long distance, which overcome the problem of high loss when the RF/wireless signal transmit over coaxial cable or free space.

咨询热线：0755-23727717 / 18927467136

Type	Product Number	Frequency	Control Interface(optional)	Wavelength	Baud Rate(optional)	Type(optional)
Point to multipoint	BST8865-XX	1.7GHz～2.2GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×8
Point to point	BST8160-XX	1.7GHz～2.2GHz	DB9(F/M) RS232/RS485	T1310nm/R1550nm	9.6kbps/19.2kbps	WDM/Simplex
Point to point	BST8190-XX	700MHz～2.7GHz	DB9(F/M) RS232/RS485	T1310nm/R1550nm	9.6kbps/19.2kbps	WDM/Simplex
Point to multipoint	BST8895-XX	700MHz～2.7GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×8
Point to multipoint	BST8835-XX	800MHz～1GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×8
Point to multipoint	BST8665-XX	1.7GHz～2.2GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×4
Point to multipoint	BST8695-XX	700MHz～2.7GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×4
Point to multipoint	BST8635-XX	800MHz～1GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM+PLC 1×4
Point to point	BST8165-XX	1.7GHz～2.2GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM/Simplex
Point to point	BST8195-XX	700MHz～2.7GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM/Simplex
Point to point	BST8130-XX	800MHz～1GHz	DB9(F/M) RS232/RS485	T1310nm/R1550nm	9.6kbps/19.2kbps	WDM/Simplex
Point to point	BST8135-XX	800MHz～1GHz	DB9(F/M) RS232/RS485	T1550nm/R1310nm	9.6kbps/19.2kbps	WDM/Simplex
