6G SFP+ & 3G CPRI SFP
Product Features
◆ Duplex LC or Single LC Connector
◆ Single 3.3 V Power Supply
◆ Compliant with SFP+ and SFP MSA
◆ Compliant with CPRI/OBSAI
◆ Built-in Digital Diagnostic Monitor function
◆ Mulit-rate for 1.228 Gb/s to 6.144 Gb/s
◆ 18-Wavelength CWDM 1270nm to 1610nm available
◆ Low Power Dissipation
◆ RoHS-6 Compliant
◆ Case operating temperature : 0°C to+70°C, -40°C to+85°C

咨询热线：0755-23727717 / 18927467136

Part Number	Description	Data Rate (Gb/s)	Reach (km)	TX	RX	Output Power (dBm)	Sensitivity (dBm)
BST-1342-55	BIDI SFP	3.072	20	TX1550/RX1310 DFB	PIN	-5～0	≦-18
BST-C2555-XX	CWDM SFP+	6.144	40	CWDM DFB	PIN	-4～+1	≦-16
BST-C2575-XX	CWDM SFP+	6.144	80	CWDM DFB	APD	0～+4	≦-24
BST-1545-27	BIDI SFP+	6.144	20	TX1270/RX1330 DFB	PIN	-2～+3	≦-16

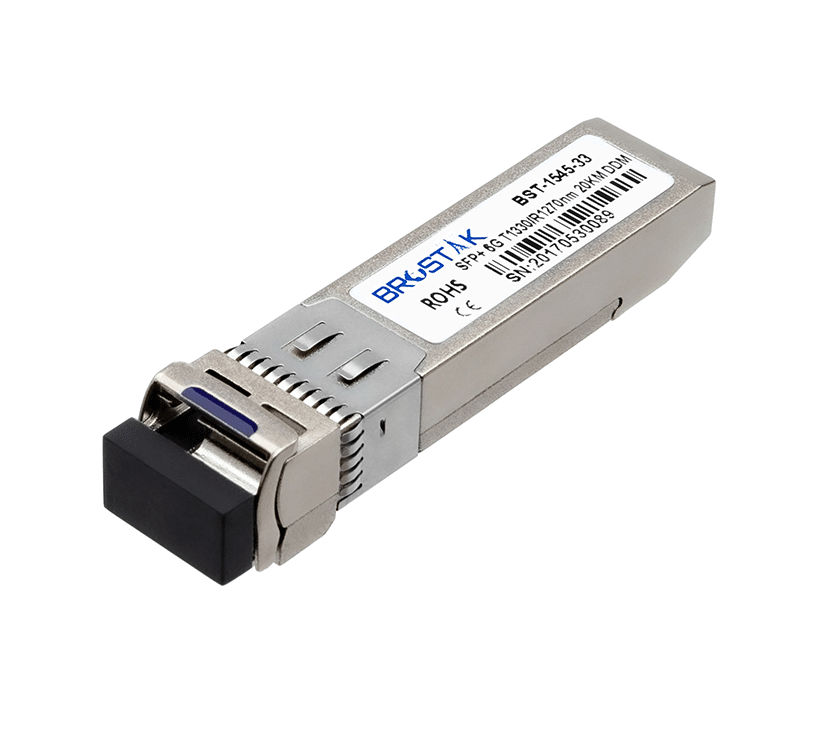

BST-1545-33	BIDI SFP+	6.144	20	TX1330/RX1270 DFB	PIN	-2～+3m	≦-16
BST-1342-31	BIDI SFP	3.072	20	TX1310/RX1550 DFB	PIN	-5～0	≦-18
BST-C2352-XX	CWDM SFP	3.072	40	CWDM DFB	PIN	-2～+3	≦-16
BST-C2372-XX	CWDM SFP	3.072	80	CWDM DFB	APD	0～+5	≦-28
