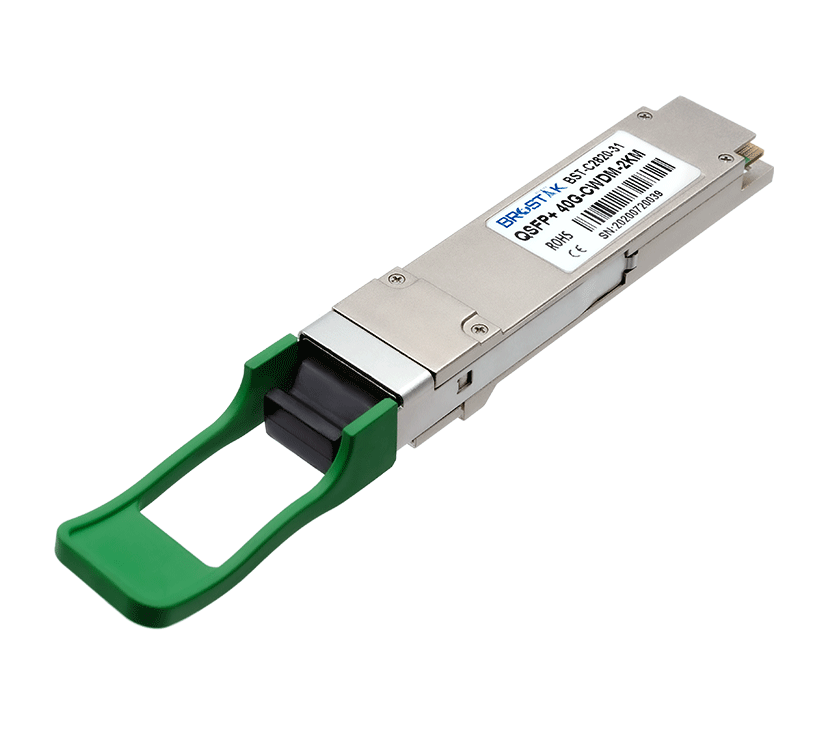

40Gb/s QSFP
Product Features
◆ Hot-pluggable QSFP+ form factor
◆ Compliant with the QSFP+ MSA, IEEE 802.3 and OTN standard
◆ 4 independent full-duplex channels
◆ Up to 11.2Gbps per channel bandwidth
◆ Aggregate bandwidth of > 40Gbps
◆ QSFP MSA compliant
◆ VCSEL/DFB/EML transmitter
◆ Built-in digital diagnostic functions
◆ Duplex LC receptacles/Single MPO-12 receptacle
◆ Single +3.3V power supply operating
◆ TX input and RX output CDR retiming
◆ Case operating temperature: 0°C to+70°C, -40°C to+85°C
◆ RoHS-6 Compliant

咨询热线：0755-23727717 / 18927467136

Part Number	Description	Data Rate (Gb/s)	Reach (km)	TX	RX	Output Power (dBm)	Sensitivity (dBm)
BST-2800-85	QSFP+ SR4	40	100M	850nm VCSEL	PIN	-7.6~+2.4	≦-11
BST-C2820-XX	QSFP+ CWDM IR4	40	2	CWDM DFB	PIN	-7.5~+2.5	≦-11
BST-C2830-XX	QSFP+ LR4	40	10	CWDM DFB	PIN	-7.0~+2.5	≦-11
BST-C2850-XX	QSFP+ Er4	40	40	CWDM DFB	APD	-2.7~+4.5	≦-19
