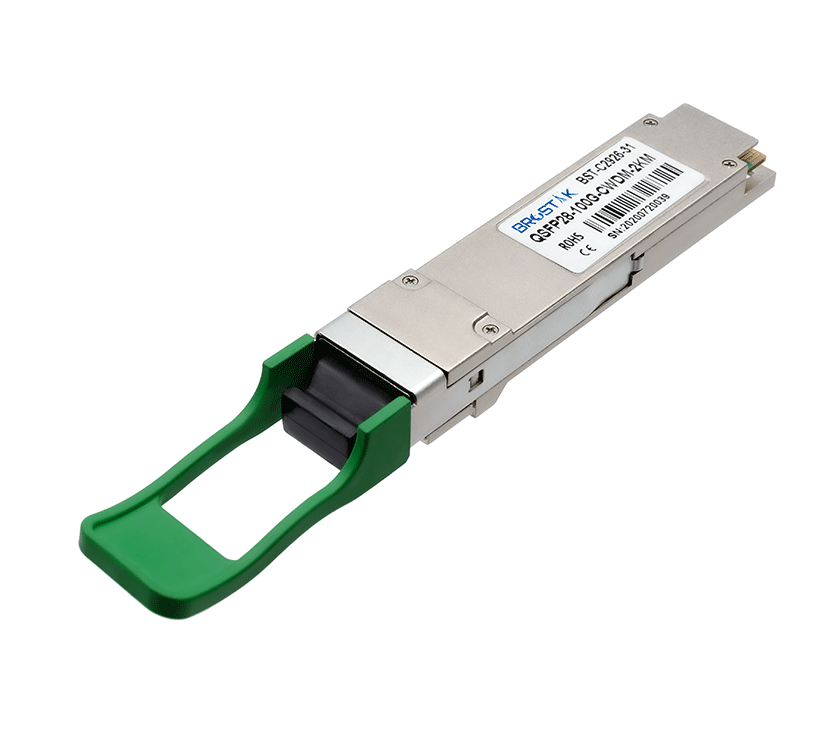

100Gb/s QSFP28
Product Features
◆ Hot-pluggable QSFP28 form factor
◆ Compliant with the QSFP28 MSA and IEEE P802.3ba ◆ standard
◆ 4 channels full-duplex transceiver modules
◆ Up to 28Gb/s per channel, 112Gb/s aggregate bit rate
◆ Support InfiniBand EDR
◆ Single 3.3V power supply
◆ 4x25Gb/s VCSEL/DFB/EML transmitter
◆ 4x25G electrical interface
◆ Built in full digital diagnostics functions
◆ I2C management interface
◆ Maximum link length of 40km on SMF/100m on MMF
◆ Power dissipation<5W
◆ Case operating temperature: 0°C to+70°C, -20°C to+80°C
◆ RoHS-6 Compliant

咨询热线：0755-23727717 / 18927467136

Part Number	Description	Data Rate (Gb/s)	Reach (km)	TX	RX	Output Power (dBm)	Sensitivity (dBm)
BST-2906-85	QSFP28 SR4	100	100M(OM4)	850nm VCSEL	PIN	-8.4~+2.4	≦-9.2(5E-5)
BST-C2926-XX	QSFP28 CWDM4	100	2	CWDM DFB	PIN	-6.5~+2.5dBm	≦-11.5(5E-5)
BST-2936-31	QSFP28 LR4	100	10	1294~1310nm LWDM	PIN	-4.3~+4.5dBm	≦-12(5E-5)
BST-2956-31	QSFP28 ER4	100	40	1294~1310nm LWDM	APD	-2.5~+4.5dBm	≦-18.5(5E-05)
