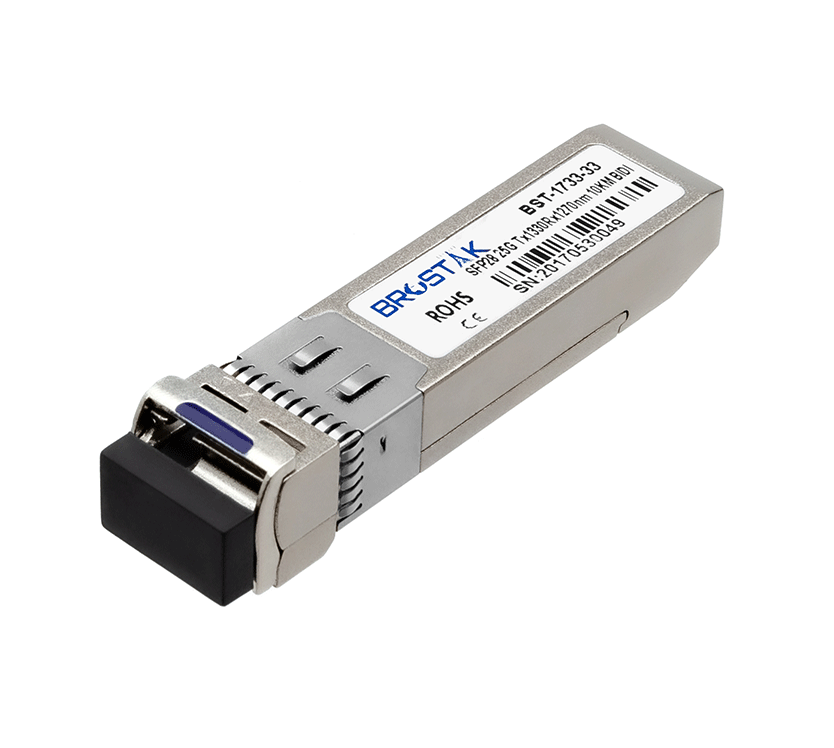

25Gb/s BIDI SFP28
Product Features
◆ Up to 25Gb/s data links
◆ BIDI LC/UPC type pluggable optical interface
◆ Support Digital Diagnostic Monitoring interface
◆ Cost effective SFP28 solution, enables higher port densities and greater bandwidth
◆ 2-wire interface for management specifications compliant with SFF 8472 digital
◆ diagnostic monitoring interface for optical transceivers Electrically hot-pluggable
◆ Metal enclosure, for lower EMI
◆ Meet ESD requirements, resist 8KV direct contact voltage
◆ RoHS-6 compliant and lead-free
◆ Case operating temperature: 0°C to+70°C, -40°C to+85°C

咨询热线：0755-23727717 / 18927467136

Product Number	Description	Data Rate (Gb/s)	Reach (km)	TX	RX	Output Power (dBm)	Sensitivity (dBm)
BST-1733-27	SFP28 LR BIDI	25	10	1270nm/1330nm DFB	PIN	-5.0~+2	≦-12
BST-1733-33	SFP28 LR BIDI	25	10	1330nm/1270nm DFB	PIN	-5.0~+2	≦-12
