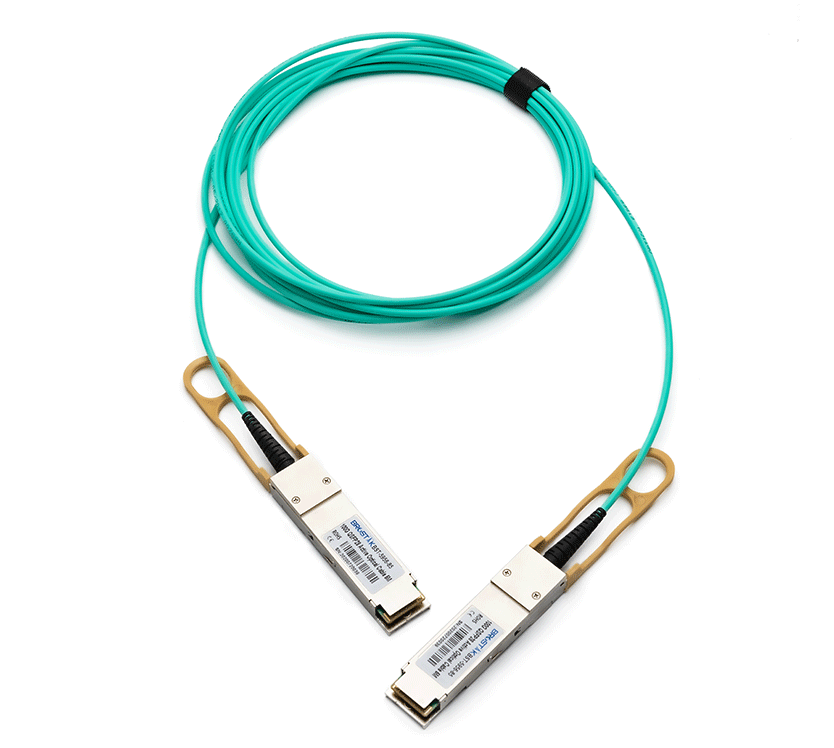

100G QSFP28 AOC
Product Features
◆ Bandwidth density of 100 Gbps
◆ Transmission data rate up to 28Gbps per channel
◆ 4 channels 850nm 25G VCSEL array
◆ 4 channels 25G PIN photo detector array
◆ Internal CDR circuits on both receiver and transmitter channels
◆ Hot Pluggable QSFP28 form factor
◆ Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
◆ 3.3V power supply voltage
◆ Low power consumption<2.5W
◆ RoHS 6 compliant(lead free)
◆ Case operating temperature: 0°C to+70°C

100G QSFP28 AOC

咨询热线:0755-23727717 / 18927467136

Part Number Description Data Rate(Gb/s) Reach(M) TX RX Output Power (dBm) Sensitivity (dBm)
BST-5916-85-11 QSFP28 to QSFP28 AOC 1V1 100 0.5~100M 850nm VCSEL PIN / /
BST-5916-85-14 QSFP28 to QSFP28 AOC 1V4 4*25 0.5~100M 850nm VCSEL PIN / /
